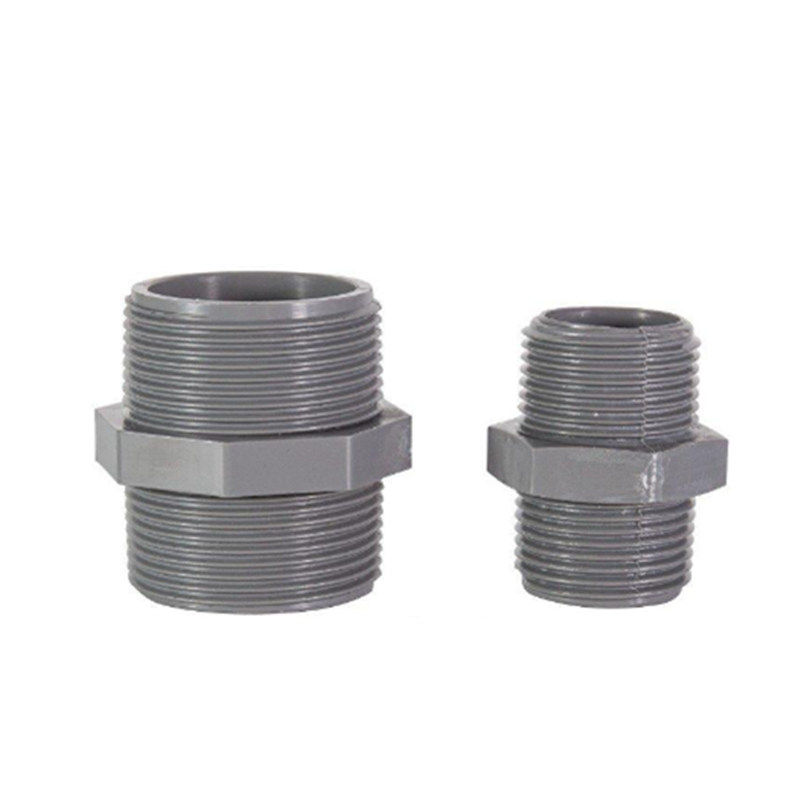

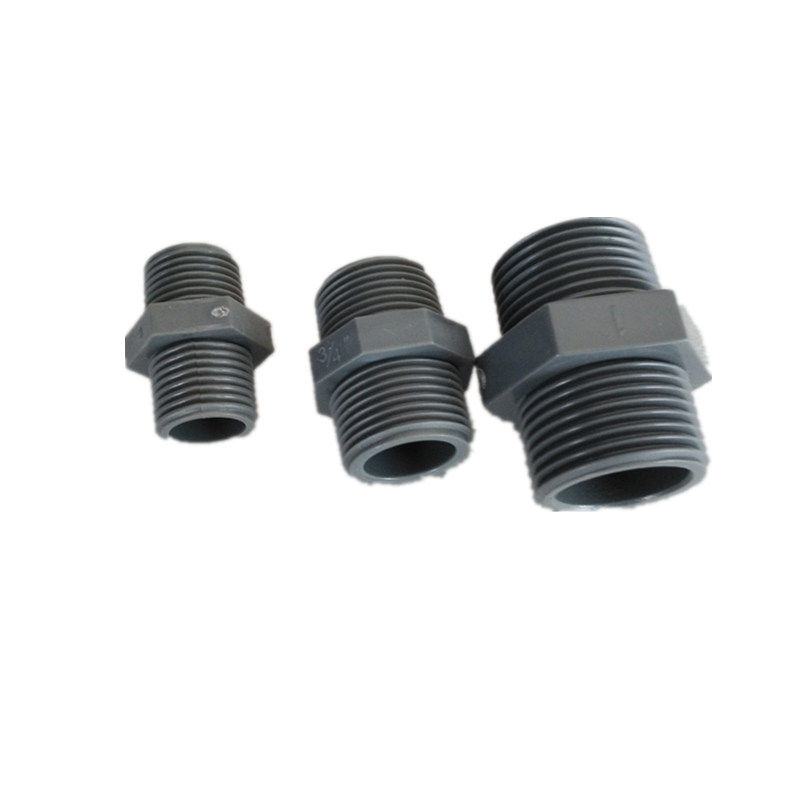

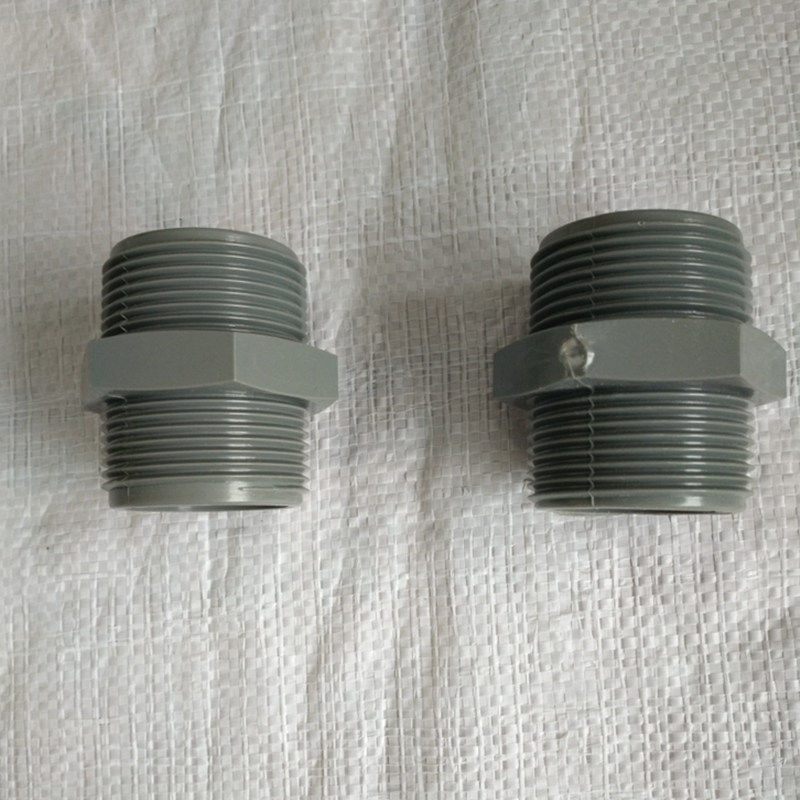

PVC六角外丝DN15 20 25 32 40 50塑料双头外丝两头外螺纹接头4分
两头外丝

|
产品名称 |
规格 |
长度L |
六角宽度M |
螺纹厚度A |
螺纹外径D |
|
PVC双头外丝 |
DN15-4分-1/2" |
38mm |
7mm |
3mm |
20.3mm |
|
|
DN20-6分-3/4" |
45mm |
8mm |
3.8mm |
25.7mm |
|
|
DN25-1寸-1" |
50mm |
10mm |
4.2mm |
32.5mm |
|
|
DN32-1.2寸-1+1/4" |
52mm |
11mm |
4.8mm |
41.5mm |
|
|
DN40-1.5寸-1+1/2" |
56mm |
10mm |
5mm |
47mm |
|
|
DN50-2寸-2" |
70mm |
13mm |
6.5mm |
58mm |
|
螺纹长度计算L-M除以2既是单边螺纹的长度，尺寸为手工测量误差±0.5mm |
|
|
|
|
|
|
|
尺寸如 有变化恕不另行通知！
PVC双头外丝
|
